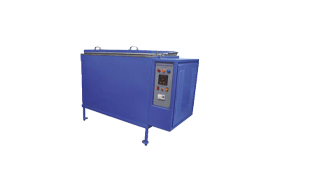

Curing Tank
Specification:
24 Hour cycle from time of mixing.
Controlled 35° C or 100° C ± 2° C Curing Temperature for concrete.
Controlled 27° C ± 2° C Curing Temperature for grey cement.
The tank has been designed to accommodate 150mm / 70.6mm cube moulds upto 36/72 cube mould and fully
insulated, complete with a hinged lid, heater, thermostat and re-circulated pump. Provision of two removable racks
allowing free circulation of water around each mould. The pump, drain valves and electrical equipment are housed in
a compartment located at one end of the tank. The Tank is heated by an immersion heater under normal conditions
and refrigeration system for grey cement the temperature is controlled at 35° C or 100° C ± 2° C / 27° C +2° C,
expect for the 15 minutes after immersion of the freshly made specimens.

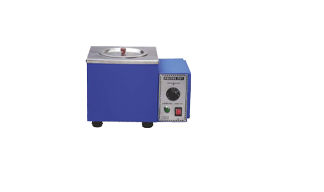

Melting Pot
Specification:
Used to melt Capping compound this pot comprises
a metal container in a well lagged steel jacket. A
thermostatic control and stand by heat switch are
fitted. Supplied complete with lift off cover.
Dimensions (Diameter x Depth) : 140 x 150 mm (Internal), 250 x 165mm (External)
Capacity : 2.4 litres
Rated Power : 750 W
Temperature : 40 to 340° C

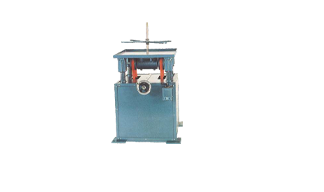

Vibrating Table
Specification:
It is designed to carry a load of 140 kg . The apparatus consists of a
motor fitted with a variable pitch pulley housed in a cabinet. The
vibrations are imparted by means off-balance masses rotating on a
shaft of a vibrator clamped to the underside of the table top. The table
top is 500 x 500 mm and has stops along its edges to prevent moulds
from walking off the table during vibration . A crass arm adjustable on a
vertical rod at the centre of the table is provided to hold the moulds
while operating the between a maximum of 3600 vibrations down to
2600 vibration per minute. A speed regulation handle is provided for
increasing or decreasing frequency. A switch is provided for starting
the motor. Suitable for operator on 230 Volts, A.C. Single Phase, 50 Cycles.

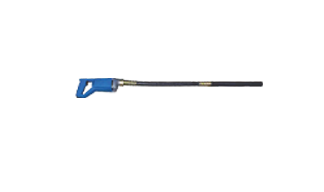

Poker Vibrator (With Vibrating Table)
Specification:
The poker vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional
tamping bar, especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip
diameter can be selected from the four available products.
Dlc Vibrating Hammer For Concrete Moulds
Specification:
Used for the compaction of concrete samples in a mould. Generally the
vibratory hammer is found to be a much faster & quicker method as
compared to impact hammering. The vibratory hammers are supplied
with 1 tamping feet & 1 shank.
Used for determination of the relative quantity of mixing water that will
bleed from a sample of freshly mixed concrete.
Dimensions : 290 x 255 x 350 mm
Weight (approx.) : 6 kg

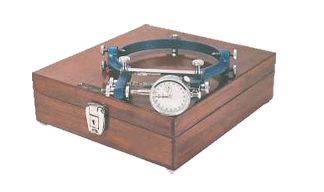

Lateral Extensometer
Specification:
The unit consists of two movable frames pivoted at one end. The
extensometer is fixed to the specimen with the help of tightening
screws. The lateral extension is indicated on a dial gauge of
0.002 mm x 5 mm is mounted on the upper ring and the tip of
the dial gauge rests on an anvil. The zero on the dial gauge can
be set by adjusting the anvil screw. Supplied in a wooden
carrying case

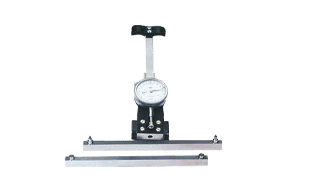

De-Mountable Mechanical Strain Gauge
Specification:
This portable gauge is designed for a gauge length of 200 mm. of the
reference pins. The deformation is indicated by a 0.002 x 5mm dial gauge
attached to the instrument. Complete with two standard bars for 200 mm
gauge length supplied in a wooden case.

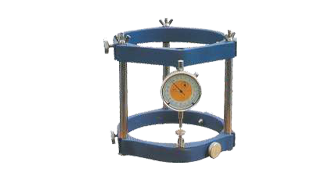

Longitudinal Compressometer
Specification:
It is designed for finding out the deformation and strains on
150 mm. Diameter and 300 mm high cement and concrete
cylinders when subjected to compressive loads. Consists of a frame with a bottom ring and a top ring with
tightening screws to firmly clamp the compressometer over the
cylinder. A dial gauge .002 mm x 5 mm is mounted on the
upper ring and the tie of the dial gauge rests on an anvil. The
zero on the dial gauge can be set by adjusting the anvil
screw. Supplied in a wooden carrying case.

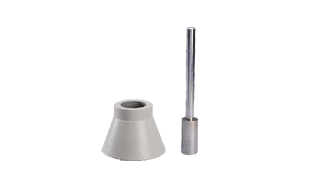

Sand Absorption Cone And Tamper
Specification:
The equipment comprises of a conical metal mould 1.5 inch dia at to
top, 3.5 inch dia at base and 27/8 inch in height. A metal tamping
rod weighting 12 ounces and having a flat circular tamping faces 1
inch in dia meter
