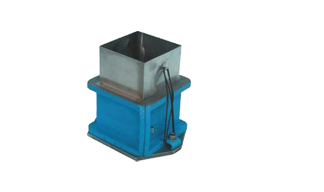

Filling Hopper For Mould
Specification:
Filling hopper, stainless steel made, for an easier filling of fresh
concrete into the moulds:
Supplied complete of clamping elastics
Cylinder Carrying Case
Specification:
Holds (8) - 100 x 200 mm test cylinders for easier field to lab transfer with
less specimen damage. Large reinforced molded handles for easier
carrying 100mm Test Cylinder Carrying Case

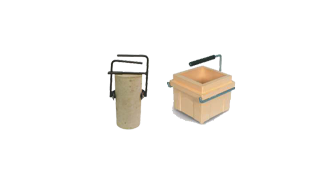

Cube And Cylinder Lifting Handle
Specification:
Lifting handle can be used to remove cylinders from curing tanks safely
150mm X 300mm Cylinder Lifting Handle
Grasping Pliers Cube Lifting Handle

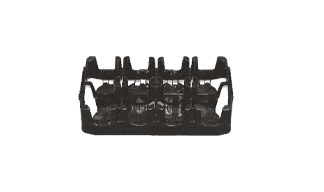

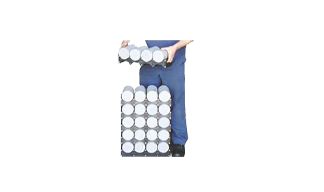

Concrete Curing Racks
Specification:
These durable racks are manufactured from plastic compounds and recycled
materials to resist moisture, abrasion, chemical and temperature variations. Each
rack has built-in handles, making them easy to carry and safely stacked 12 tiers
(58") high. The racks unique open frame design allows water vapor to flow
through and saturate the surface of each individual cylinder, and also separates
and prevents cylinder surfaces from touching each other for improved
temperature control.
Each rack holds 4 pieces 100 x 200 mm cylinders and is 17-5/8" wide x 6-
3/8" deep. The weight of one rack with 4 cylinders is approximately 17 KG.
One base rack is required for each stack.

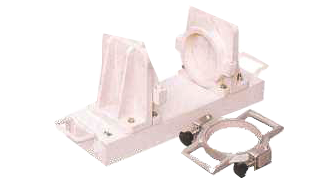

Capping Set (Horizontal)
Specification:
The set comprises of a cylinder capper, a cylinder carrier and a ladle. The
cylinder capper consists of a base on which two accurately machined
plates are mounted vertically. One plate is firmly fixed and the other one is
adjustable horizontally. Two plates are provided with holders for holding
the cylinder in position. The holder are split and the bottom half of each
holder is fixed firmly and the top half of each is removable and bolted down
to the lower half. On the upper parts of the vertical plates 'V' s are provided
for pouring the capping compound. Two spacers are also provided.
Complete with cylinder carrier and ladle for molten compound.

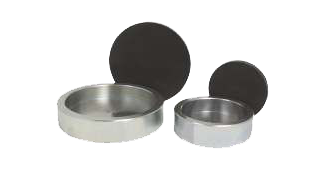

Concrete: Pad Caps And Retainer Rings
Specification:
Pad-cap retainer rings hold neoprene pads that fit onto the ends of concrete
test cylinders. Made from plated high-alloy steel to resist rust and deformation
fatigue. Bearing surfaces machine-planed to within 0.002". Supplied two
per set. Neoprene pad inserts are made from a tough elastomeric material
that evens out and fills irregularities in the ends of concrete cylinders to assure
even distribution of test loads for consistent results.

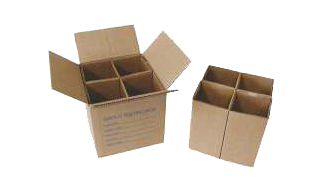

Grout Sample Box
Specification:
This grout sample box is an alternative method that follows the guidelines
to ASTM C-1019 / UBC 21-18 and will save you money, time, labor,
and space. Engineered-slotted corrugation retains moisture while
simulating cmu absorption rate. Each box produces 4 specimens, 3 6.25
mm x 81.5 mm x 162.5 mm. Shipped 25 boxes per carton.

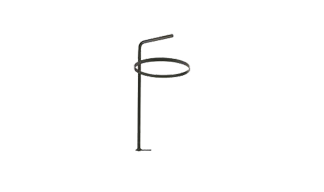

Cylinder Carrier
Specification:
Steel cylinder carrier is plated for rust resistance.
Used for carrying 150 mm dia. x 300 mm high
cylinders in the field or lab.

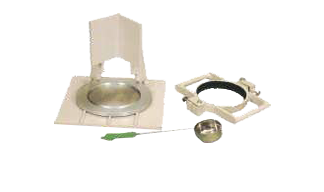

Capping Set (Vertical)
Specification:
Mould for cylinders 150 mm dia. x 300 mm long, 100 mm x 200 mm
Consists of a base with an upright. The upright serves as a guide for
positioning the capping plate and cylinder. The 19mm thick capping plate is machined accurately. There is a
recess in the plate for keeping the molten capping compound and to position cylinder. Complete with cylinder
carrier and ladle
