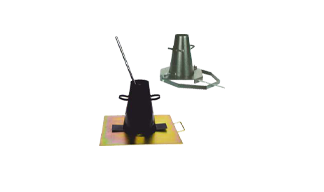

Slump Test Apparatus
Specification:
The apparatus consists of one slump cone with handles and
foot pieces. The slump cone has internal dimension 200 mm
dia at base 100 mm top dia and 300 mm height foot pieces
can be fixed to the clamps on the base plate. The base plate
has lifting handle for easy transportation . One graduated steel
rod 16 mm dia x 600 mm long rounded at both ends and
graduated in mm is also supplied

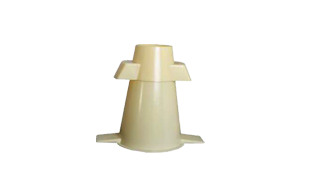

Slump Cone, Plastic
Specification:
More economical than metal cones, lightweight, will not rust or dent.
Easy to clean and accepted by ASTM / BS Standards

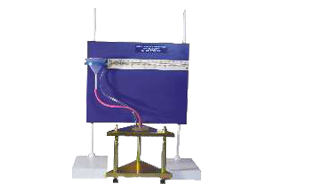

Initial Surface Absorption Test (Isat) Apparatus
Specification:
This apparatus is used to assess the surface absorption characteristics of concrete.The
rate of flow of water per unit area into a concrete surface when subjected to a constant
head of 200mm is measured. The unit consists of a capillary tube mounted on a scale, a
water reservoir & connecting tubes. Easy to use, mounted on a stand.

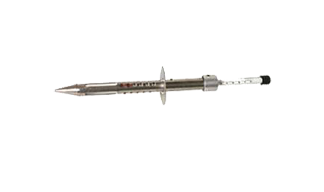

K-Slump Tester
Specification:
K-Slump Tester for in-place measurements indicates correlation to
the slump test. The probe determines workability of concrete and
the degree of compaction. Includes correlation chart and
instructions.

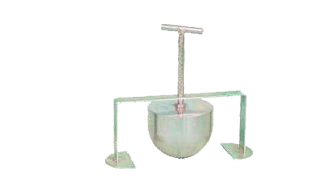

Kelley Ball Penetration Apparatus
Specification:
The apparatus is used to determine the workability of Portland cement &
concrete. The Kelly ball test is considered to be simple and much faster than
the slump test. Twice the Kelly ball reading approximately equals the slump.
It consists of a cylinder with a ball shaped bottom and handle, together
weighing 15 kg. A strip frame, guides the handle and serves as a reference
for measuring the depth of penetration. The handle is graduated in mm.
Penetration can be recorded to the nearest 0.5 mm

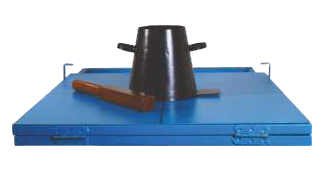

Concrete Flow Table Test Set
Specification:
The test set is used for concrete mixes of high workability and
determines flow index as an arithmetic mean of the diameter of
the specimen after working on a flow table. The apparatus
consists of a double steel table, an upper table measuring 700 x
700 mm and hinged at one side to the lower table. The top table
is inscribed and all parts are protected against corrosion. The
stainless steel cone has a 130 ±2 mm top diameter, 200 ±2 mm
base diameter and 200 ±2 mm height and 1.5 mm thickness.
Dimensions: 700 x 850 x 300 mm, Weight (approx.) 40 kg
ZI 2010 Concrete flow table test set
ZI 2010-A Flow cone for
ZI 2010-B Wooden tamper 40 x 40 x 335 mm

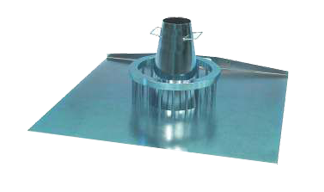

J-Ring, Narrow Gap
Specification:
The J-Ring test is used for determining the passing ability, the flow spread and
the flow time of self compacting concrete as the concrete flows through the J_Ring apparatus. The J-Ring narrow gap with ø18 mm x 16 smooth bars is
manufactured from stainless steel.
The Slump Cone is made from sheet steel protected against corrosion, with
diameters; top 100 mm, base 200 mm and with a height of 300 mm.
The Base plate is 900x900x3 mm square, made of stainless steel with
engraved circles of 200 mm and 500 mm diameter conforming to EN 12350-
8.
The Steel weighted collar is used to stabilize the slump cone on J-Ring or
slump flow tests.
Minimum apparatus for the J-Ring test are J-Ring with narrow gap and
slump cone.
ZI 2009 J-Ring, narrow gap
ZI 2002 Slump cone for J-Ring
ZI 2009-A Base plate for J-Ring and slump-flow tests
ZI 2009-B Steel weighted collar, 9 kg
ZI 2009-C EN 12350-8 for slump cone on J-Ring or slump flow test

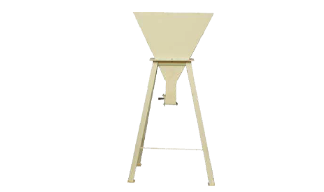

V Funnel
Specification:
The V Funnel apparatus is used to evaluate the flow time of freshly mixed selfcompacting concrete. The test is not suitable when the maximum size of the
aggregate exceeds 22.4 mm.
The test set consists of a stainless steel funnel placed vertically on a
supporting stand. The discharge orifice is equipped with a lid, which can be
momentarily opened.
The l shape box apparatus is supplied complete with:
Filling Hopper
Base

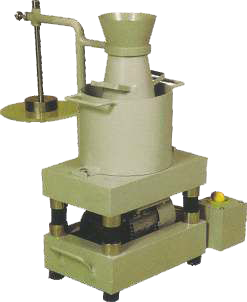

Vee Bee Consistometer
Specification:
The instrument is used for workability as well as consistency of fresh
concrete. A slump Cone and a graduated rod supplied with the
instrument helps the operator to find out slump values and vibration
table with container and acrylic disc is used to find out workability of
concrete expressed in Vee Bee degrees, which is defined as the time in
seconds to complete required vibrating at which the fresh concrete
flows out sufficiently to come in contract of the entire face of acrylic disc.
Specification:
The equipment consists of : A vibrating table size 380 mm long and
260 mm wide, resting upon elastic support at a height of about 305
mm above the floor, complete with Start/Stop switch, cord and plug.
A holder is fixed to the base in to which a swivel arm is telescoped with
funnel and guide swivel arm is also detachable from the vibrating table.
The divisions of scale on the rod record the slump of the concrete in
millimeters. Supplied complete with a sheet metal container with lifting
handles which can easily be fixed to the vibrating table. A slump cone
open at both ends with lifting handles and a tamping rod of size 16 mm
dia and 600 mm long rounded at both ends.
