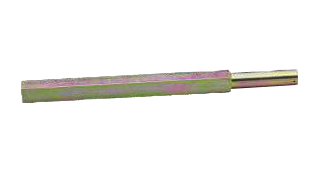

Tamping Bar
Specification:
This is used for compacting concrete into cube moulds. This rod
is made of steel bar it is 25 mm square x 380 mm long with
handle.

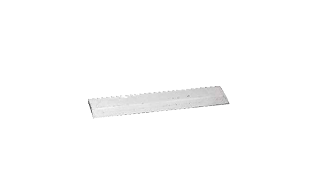

Straight Edge
Specification:
Used to remove excess material when molding cube and cylinder
specimens. Conduction slump cone and air meter tests. Flat bar
made from steel

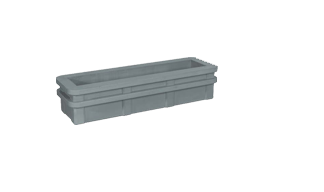

Beam Mould
Specification:
ZI 2029A 100 x 100 x 500 mm Polyurethane 2.5 KG
ZI 2029B 150 x 150 x 700 mm Polyurethane 4.8 KG
ZI 2029C 150 x 150 x 750 mm Polyurethane 5.0 KG
ZI 2029D 150 x 150 x 600 mm Polyurethane 4.4 KG
Cube Mould
Specification:
These are available in different sizes and are made according to Indian and British standards . For the metric size cube
mould, the faces are machined flat to +/-0.2mm accuracy and finished to within 0.2mm. For the inch size moulds, the
faces are machined flat to +/-0.01 inched to within 0.01in. All moulds are supplied complete with base plate.
ZI 2024A Cast Iron Mortar Cube Mould 50mm, Single Gang
ZI 2024B Cast Iron Mortar Cube Mould 50mm, Three Gang
ZI 2024C Mild Steel Cement Cube Mould 70.6mm, with Loose Base Plate
ZI 2024D Cast Iron Concrete Mould 75mm Single Gang
ZI 2024E Cast Iron Concrete Mould 100mm Light Weight
ZI 2024F Cast Iron Concrete Mould 100mm Clamp Type (8.5 KG) Four Part
ZI 2024G Cast Iron Concrete Mould 150mm Light Weight 8KG
ZI 2024H Cast Iron Concrete Mould 150mm ISI Marked
ZI 2024I Cast Iron Concrete Mould 150mm Clamp Type (18 KG) Four Part
ZI 2024J Cast Iron Concrete Mould 150mm Clamp Type (16 KG) Two Part

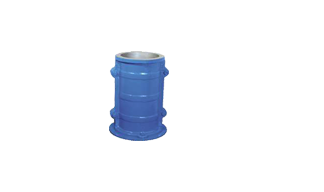

Cylindrical Mould
Specification:
The moulds is split vertically into two parts. The mean internal diameter in within
+/-0.2mm and height is within +/-1mm. The ends are machined to +/-0.05.
The base plate and top plate are machined flat to +/-0.03mm.
ZI 2025A Mould cylinder, cast iron, 150mm dia x 150mm height.
ZI 2025B Mould cylinder, cast iron, 150mm dia x 300mm height.
ZI 2025C Mould cylinder, cast iron, 160mm dia x 320mm height.
ZI 2025D Mould cylinder, cast iron, 100mm dia x 200mm height.
ZI 2025E Mould cylinder, cast iron, 300mm dia x 600mm height.
Plastic Moulds
Specification:
These one-piece moulds, very appreciated by the user, are made from hard plastic, strong, light, undeformable; resistant
to vibrations shocks and wear. They do not require mounting and dismounting operations, thus saving time and labour.
They just require a simple clean and demould oiling before being ready for use again for many times. The specimen is
expelled from the mould by compressed air or water. The entire process of manufacturing the plastic moulds support
greener and cleaner environment. This type of manufacturing is pollution free. The complete range of plastic products are
1/10 the weight compared to the metal substitute. This makes them easy to handle in transportation.

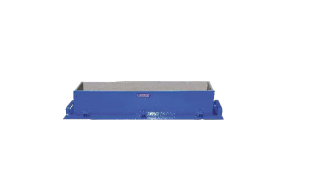

Beam Moulds
Specification:
Made of Cast Iron / Mild Steel. The mould are
made of 4 plates assembled together. Each
mould is supplied complete with base plate.
Faces are machined flat to ± 0.2mm. And
finished in size to 0.2mm.

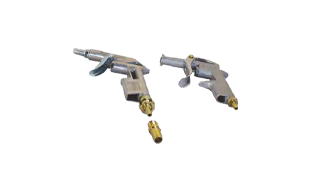

Gun For Mould
Specification:
Gun, to connect to a water or air pressure, to eject the specimen
from the PU and ABS moulds.

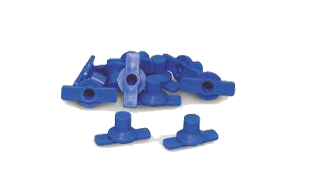

Stopper For Plastic Cube Mould
Specification:
Stopper, plastic, to plug the hole of the moulds
Pack of 10 pcs.
