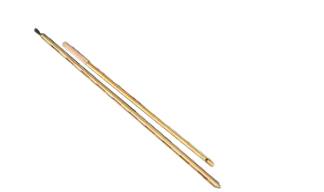

Cement Sampler
Specification:
This is a brass tube approximately 53cm long and
2.8cm I.D. with a wooden handle. Total length
approximately 73cm. The tube has the sharp angular
edge which conveniently pierces cement bags. An air
hole of approximately 3mm dia is drilled on the tube
near handle. Total sample collected at one time is
300 cm approximately.

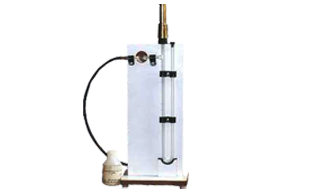

Blaine's Air Permeability Apparatus
Specification:
Designed to find out specific gravities of semi liquids like mud and
other liquids having densities in the range 0.8 to 2.5. It has a stainless
steel bam calibrated specific gravities from 0.8 to 2.5. A stainless
steel cup with lid and overflow vent is fitted on one side of the beam. A
counter weights with cursor slides over the graduated scale. The
beam has a knife-edge at centre which rests in a fulcrum fitted in the
stand. Leveling screws and spirit level are fitted to the stand

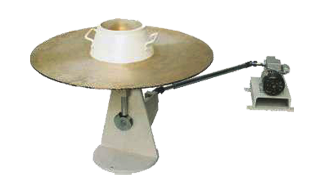

Flow Table
Specification:
Consists of a steel table top 76.2cm ( 30 inch. Dia) Finely machined. The
integral cast ribs are designed for support and strength. The
stand is fabricated out of cast iron and is of study
construction. Holes for mounting in foundations are drilled
in the base plate. The ground and hardened steel cam is
designed to fit and drop the table by 12.5mm. Electrically
operated to raise and drop the table top, approx. 15 times in 15
seconds, Suitable for operation on 230 Volts, 50 cycles, A.C. supply.
Supplied with one conical mould with two handles, 12cm height, having
17cm. Inside Dia. at the Top and 25cm inner dia. at the base.
Complete with a tamping rod 16mm dia x 600mm long one end
rounded.

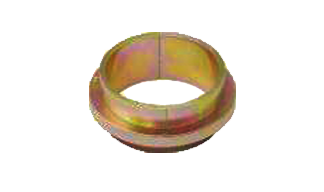

Ring Mould
Specification:
Consists of mould 100 mm x 5mm. Deep and a glass base plates. Used
to determine soundness of hydrated lime
Gillmore Needle Apparatus
Specification:
A base with a Vertical shaft and Two horizontal arms. The lower arms is
adjustable for height. 1 no. Initial needle 1/12-inch dia ¼ lb. Wt. 1 no.
Final needle 1/24 inch dia. ¼ lb. Wt. 1 no. Glass base plate.
Complete as above

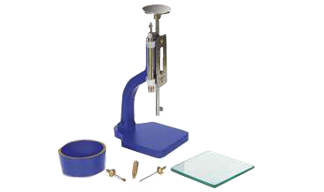

Vicat Needle Apparatus With Dashpot
Specification:
The apparatus consists of a metallic frame bearing a freely movable and
with a cap at top, one vicat mould and glass base plate and one set of
needles one each initial needle, final needle and consistency plunger. It
comes with a dashpot which facilities gentle lowering of the needles.

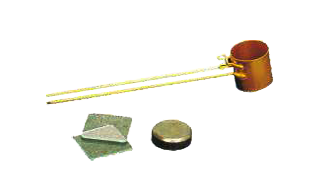

Le Chatelier Mould
Specification:
It consists of a small split cylinder forming a mould. On either side of the split cylinder. Two parallel indicating arms
with pointed ends are attached. Supplied complete with two glass plates and a lead weight.

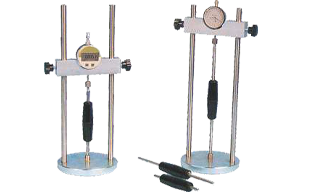

Length Comparator
Specification:
The instrument consists of a channeled or a round base over
which two vertical pillars are fixed. An adjustable cross plate is at
the top. A dial gauge, reading to .002mm x 5mm. Can be
located upon a 6.5mm. dia ball or other reference point
cemented in the specimen. On the base there is similar recessed
seating in which can be placed a second ball or reference point
in the specimen.
Complete with a stainless steel standardization bar with
insulated grip and with 6.5mm dia. Balls mounted in the ends.
The unit can be supplied with an Electronic Dial Gauge at extra
cost if indicated at the time of placing the order.

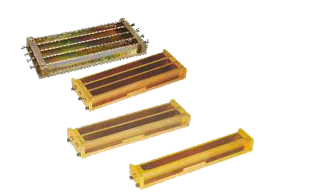

Shrinkage Bar Mould
Specification:
Stainless steel smooth or knurled and threaded reference pins as required.
Supplied in Packs of one dozen.
