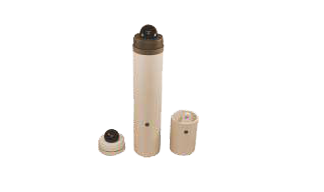

Bentonite Slurry Sampler 50 Meters
Specification:
3.50 (3-1/2") white PVC, double check ball bailer, slurry sampler
bailer diameter: 3-1/2"
overall length: 20"
chamber length: 12"
construction: PVC body and lifting bail
Fdot approved: yes, for drilling fluid slurry testing

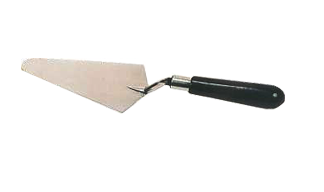

Gauging Trowel
Specification:
Weight approximately 210 gms.. Best quality with hard wood
handle blade length 200mm

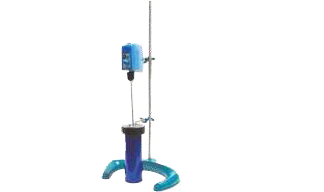

Apparatus For Reactivity Of Quicklime
Specification:
The reactivity of quicklime apparatus is used to determine the
reactivity of ground quicklime on slaking.
The apparatus consists of a dewar flask of 1 liter capacity,
thermometer, electric stirrer, base stand and the related accessories.

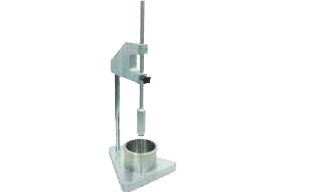

Plunger Penetration Apparatus
Specification:
The plunger penetration apparatus is used to determine the
consistency of fresh mortar, building lime and masonry cement. The
test apparatus consists of a base to place the test cup and a vertical
column holding the penetration plunger assembly. The drop default
height is adjusted to 100 mm. The plunger assembly weight is 90 g.

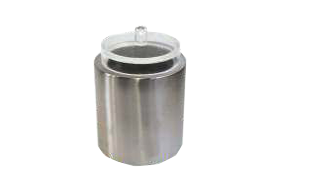

Slaking Vessel
Specification:
Slaking Vessel is used to determine the yield of lime by leaving the
lime sample to slake into. Stainless steel made and double walled
insulated. The cylinder has inside dimensions dia. 113 mm by 140
mm deep. Supplied complete with cover.

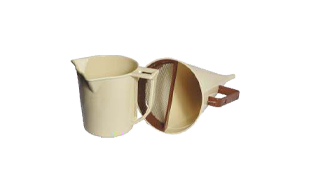

Marsh Funnel With Measuring Cup
Specification:
This cone is used to find out viscosity of bentonite slurry and
similar material. The marsh cone is 6 inch in diameter at the top
and 12 inch long, and tapers to join a tube 2 inch long and
3/16 inch inside dia. The capacity of the funnel is 1500cc.
Time in seconds required to flow out 1000cc of slurry from cone
is measured as funnel viscosity of the material.

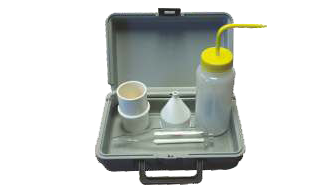

Sand Content Kit
Specification:
One of the primary functions of a drilling fluid is to carry drilled solids from the
well bore. These solids are a contaminant, and if left in the system, can lead to
numerous problems. The ofite sand content kit determines the volume percent of
sand-sized particles in the drilling fluid. Api defines sand-sized particles as any
material larger than 74 µm (200-mesh) in size. The test can be performed on low
solids fluids as well as on weighted fluids. The kit consists of a glass tube
graduated to read percent (%) by volume, a funnel, and a 200-mesh sieve
contained in a cylindrical shaped holder.
Consists of sand content kit, complete, with sieve, funnel, graduated tube, wash
bottle & carrying case

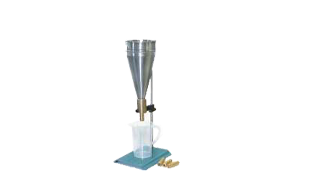

Flow Cone
Specification:
Flow cone apparatus is used for
determining the flow properties of
grouts, mortars, muds and other
fluid materials.
The flow cone apparatus is
supplied complete with:
Cone, Sieve : 1.5 mm,
Cup : 1 ltr,
Nozzle : 10 mm,
Fitting bush,
Stand.

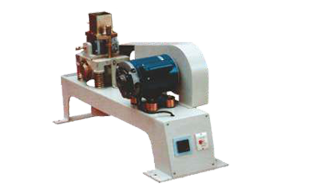

Vibrating Machine
Specification:
The machine consists of a vibrating frame assembly and
an electric motor mounted on a sturdy base.
The complete frame assembly consists of a vice to hold a
70.6 mm cube mould and two studs threaded at top and
a hopper to feed the sample in the mould. This assembly is
supported on four springs and has an in built rotating shaft
which rotates eccentrically and thus imparts vibrations to
the entire frame. A balance weight is an integral bottom
part of the frame. The centre of gravity of the assembly is
brought to the centre of the eccentric shaft within a
distance of 25 mm below it. The electric motor drives the
shaft of the frame and thus imparts required vibration to the
moulds.
The frequency of vibration is 12000 +/- 400 Vibration
Per Minute. Supplied complete with on 70.6 mm Cube
Mould with loose base plate, a time switch 0-5mins x
1mm.
