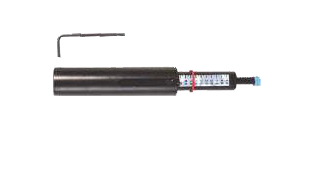

Pocket Concrete Penetrometer
Specification:
Consists of a needle having face area 3/10 sq. cm. and graduated at a
distance of 25 cm. The needles point is an integral part of barrel which
houses a calibrated spring. The spring is confined in a sleeve.
The resistance offered by the concrete mortar is shown on the direct reading
scale with a marker ring which holds its position when released. Scale range
is 0-50 kg/cm when the penetration resistance reaches a value of
35kg/cm the concrete is assumed initially set.
Supplied complete in carrying case.
L Shape Box Apparatus
Specification:
The L Shape box is used for determining the passing ability rate
of freshly mixed self compacting concrete. The distance between
12 mm diameter bars can be set between 41±1 mm or 59±1
mm. L Shape box is designed for ease of cleaning the vertical
and horizontal hoppers.
The l shape box apparatus is supplied complete with:
Filling Hoppe
Base

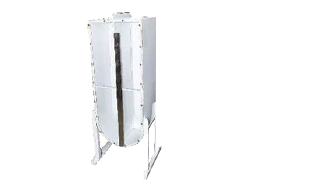

U Shape Box Apparatus
Specification:
The U Shape box apparatus is used to determine the filling and
passing ability of self-compacting concrete (SCC). The U box is
made of stainless steel consisting of three 12 mm dia. Rebars.
The U box is mounted on a frame with a fixing mechanism.
Mortar Penetrometer
Specification:
It is used for finding out the rate of hardening of mortar sieved
from concrete spring and a stem graduated from 0-70 kg x 1 kg.
Six interchangeable penetration needles of areas 645, 323, 65
32 and 16 mm sq. is provided . The penetration resistance is
measured by the force exerted to penetrate the mortar by 25 mm
and is indicated by a sliding ring on the stem, which is
graduated. Needle shanks are marked at every 12.5 mm.
Supplied complete in a wooden carrying case.

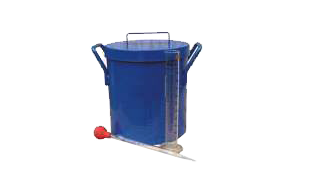

Bleeding Of Freshly Mixed Concrete
Specification:
ZI 2016 is used for determination of the relative quantity of mixing
water that will bleed from a sample of freshly mixed concrete

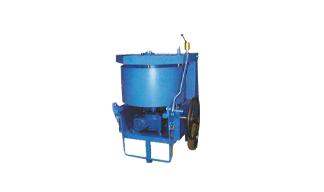

Laboratory Pan Mixer (Capacity 40 Ltrs.)
Specification:
The Concrete mixer has been designed for mixing small quantities of
concrete used in preparation of concrete cubes, for testing in
laboratories.
Mixing Capacity : 40 ltrs.
Overall Dimension : 910 x 875 x 1250 mm
Motor : 2 HP, 960 RPM
Power supply : 440 V, 50 Hz, 3 phase AC

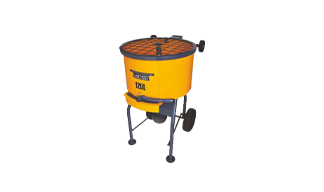

Labomix Concrete Pan Mixer
Specification:
The Concrete mixer has been designed for mixing small quantities of
concrete used in preparation of concrete cubes, for testing in
laboratories. The purpose of the mixer is to smear mechanically the
aggregate surface with cement paste uniformly & produce a mix of
uniform consistency. This in turn gives consistent quality of cubes
specimens when casted in the moulds.
Mixing Capacity : 40 ltrs.
Overall Dimension : 910 x 875 x 1250 mm
Motor : 2 HP, 960 RPM
Power supply : 440 V, 50 Hz, 3 phase AC

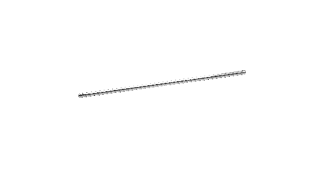

Tamping Rod
Specification:
Quality, durability and efficiency completely lives up to
even the highest demands.
Large motor with plenty of power
High quality and finish
Exchangeable mixer shovels
Automatic emptying of the container
Positioning bolt secures the cover during use/transport
Large transport wheels makes it easy to load the mixer
Can be operated by one man
Easy to clean

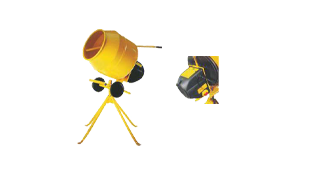

Laboratory Concrete Mixer (Motorised)
Specification:
A Concrete and mortar mixer for light professional and DIY use.
Designed to give reliable service with low maintenance requirements.
The compact storage size makes the Mixer a convenient product for
DIY users.
Advantages:
Light and effective the Mixer mixes a full barrow load
Compact enough to be transported in the boot of car
Supplied complete with stand
Direct drive for increased reliability
Full thermal overload protection
230 V, AC Single Phase
Drum capacity: 100 Ltrs.
