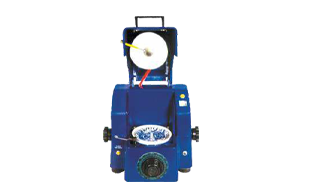

Infrared Moisture Meter
Specification:
It is a fast ,accurate method to derive direct moisture % in
a sample by Loss on Heating Method. Heating
arrangement consists of a 250 watt heating lamp with a
solid state power stat to control rate of drying and also
temperature

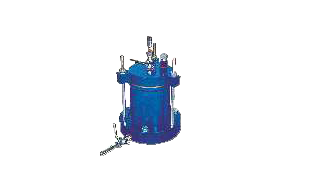

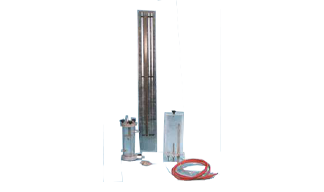

Permeability Apparatus (Falling Head Permeability)
Specification:
The apparatus is used for the laboratory determination
of permeability of soil using a constant or a variable
head. This test is recommended for soils with co-effcient
-3 -7
permeability in the range of 0-10 to 10 cm/sec. The
maximum particle size of the soil which can be tested in
the mould is 10mm.
Soil Permeability 75 Mm
Specification:
Same as ZI 3030 but with glass tubes of 75mm, bore tube
is provided with over flow arrangement for constant head
tests. The remaining tubes are used for falling head test.

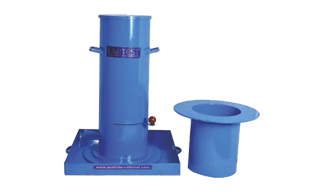

Sand Pouring Cylinder
Specification:
This apparatus is used for the in place determination of the
dry density of compact, line and medium grained soils and
for layers not exceeding 500mm thickness. The complete
apparatus consists one each of Small sand pouring cylinder,
3 litre capacity fitted with conical funnel and shutter. Cylinder
calibrating container, internal dia 100mm and 150mm
height.
Accessories:
Metal tray, 300mm square and 40mm deep with hole

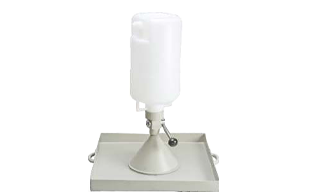

Sand Density Cone Apparatus
Specification:
Used to determine the in-situ density of fine grained
compacted soil. The test consist in digging a hole into the
ground and then collect, dry and weight the sampled soil.
The hole is then filled with dry sand from the cone
container. The apparatus consist of a double metal cone,
one plastic 5 lts jar & a metal tray with centre hole. Size of
the cone is 6½” (165.1mm)

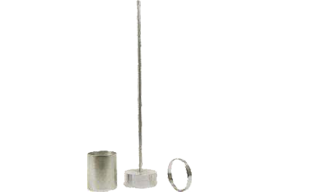

Core Cutter
Specification:
This is used for determination of in situ dry density of natural or compacted fine
grained soil, free from aggregates. A cylindrical cutter is used to extract a sample
of the soil with the help of a dolly and rammer. From the weight, density and the
moisture, and dry density of the soil is ready calculated .
It consists one each of: cylindrical core cutter mode of steel, 127.3mm. Long and
100mm internal diameter. Steel dolly, 25mm high with a lip to enable it to be
located on top of the core cutter, rammer with detachable steel rod.

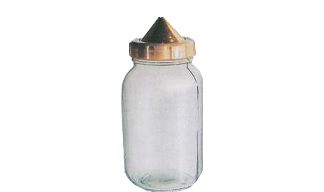

Pycnometers
Specification:
Useful to determine specific gravity of clays, sand and gravel of size smaller than
10mm.Comprises a 1 kg. glass jar with brass cone. Locking ring and rubber seal.

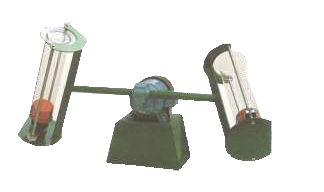

PARTICLE DENSITY BY GAS JAR METHOD (END-OVER-END SHAKER)
Specification:
This method applies for soil containing upto 10% of
particles retained on 37.5 mm sieve. The equipment is
used to rotate two gas jars at approx. 50 R.P.M..Glass
Jar is 1 litre in capacity with rubber bung.

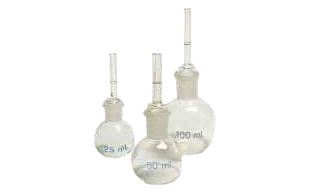

Density Bottle (Gay-Lussac Type)
Specification:
For determining the particle density
(Specific Gravity) of sand, fine aggregate & filler.
Capacity 25ml, 50ml, 100ml, 250ml, 500ml & 1000ml

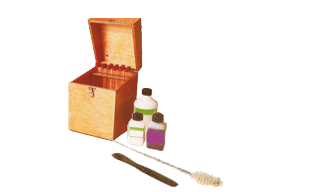

Soil Testing Kit
Specification:
A very useful kit to determine on the spot soil pH value.
12 thick walled test tubes with rubber bungs.
1 tube Cleaning brush.
1 bottle of Barium Sulphate (100gm)
1 bottle of Soil indicator (100gm )
1 bottle of Distilled water (500gm)
1 Spatula.
1 Colour chart, range 4.0 to 8.0 ph in 0.5 ph steps.
Supplied complete with carrying case.

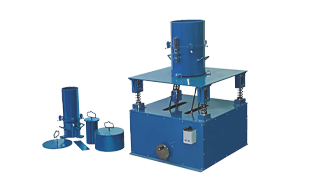

Relative Density Test
Specification:
The equipment consists one each of:
Vibratory table, with a cushioned steel vibrating decks
about 75cm x 75cm. It has a frequency of
approximately 3600 vibratory table, minute under a
11.5kg load. Amplitude is variable in between
0.65mm in step of 0.05 to 0.25mm, 0.25 to 0.45 mm
and 0.45 to 0.65mm. Suitable for operations on
415V, Three Phase supply. Cylindrical metal unit
weight mould, 3000ml capacity. Guide sleeve with
clamp assembly. Surcharges base plate for mould.
Handle for surcharge base plate. Surcharge weight.
The total weight together with surcharge base plate
and handle is equipment to 140 kg. / cm . For mould.
Cylindrical metal unit weight mould 15000 ml.
capacity. (Total weight together with the above mould
& surcharge weight is equivalent to 140 kg./ cm ) dial
gauge 0.01mm x 50mm travel. Extension piece 25mm
for dial gauge

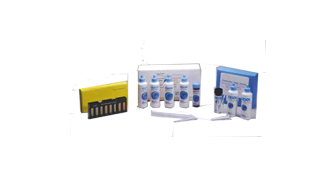

Water Testing Kit
Specification:
Acidity Testing Kit
Chloride Test Kit
Hardness Test Kit
Sulphate Test Kit
Alkalinity Test Kit
