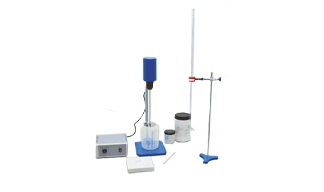

Methylene Blue Test Set
Specification:
High speed agitator motor, 400/600 r.p.m.
Stirring propeller, ø 70 mm 4 flanks
Glass burette, 50 ml x 0.1 ml
Burette holder and stand
Filter paper, 1 pack (100 pcs.), 125 mm dia, 95 g/m ,
0.20 mm thickness
Glass rod, ø 8x300 mm
Plastic beaker, 1000 ml
Methylene blue, 100 g
Kaolinite, 500 g

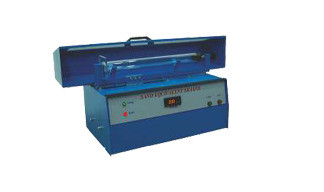

Motorised Sand Equivalent Shaker
Specification:
Stroke Travel (EN) 200 mm ± 1 mm
Stroke Travel (ASTM) 203.2 mm ± 1.02 mm
Rate (EN)180mm ± 2/min
Rate (ASTM)175 mm ± 2/min
Dimensions mm (wxlxh) 240 x 800 x 340
Weight Kg 27.5

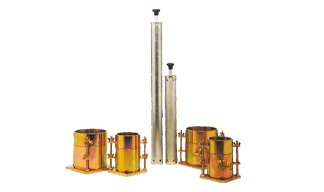

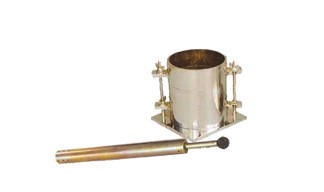

Heavy Compaction Test
Specification:
Instrument consists one each of compaction
mould steel 150 mm I.D. x 127.3mm height
volume 2250cc. Complete with collar and
base plate. Compaction Rammer is 4.89
kgs. in weight x 450 mm controlled fall
Standard Compaction Test
Specification:
The apparatus consists one each of compaction mould
steel, 101.6mm I.D. x 116.4mm height x 944 cc.
volume, complete with collar and base plate
Compaction Rammer is 2.5 kgs. in weight x 12”
controlled fall. Face of the rammer is 2”
Automatic Soil Compactor
Specification:
An automatic blow pattern ensures effective
compaction for each layer of soil and the rammer
travels across the mould. The table rotates the mould in
equal steps and the number of blows per layer can be
set at the beginning of the test by the digital counter.
User defined blow number and in-out distribution is
also available.
A standard proctor / CBR switch, emergency stop and
start push buttons are located beside the blow counter.
220 V, 50-60 Hz, 1 Ph

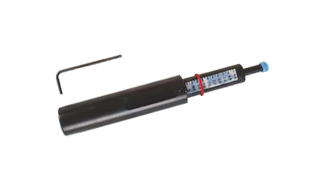

Pocket Pentrometer
Specification:
It consists of a light weight barrel assembly with a polished and
ground steel loading piston plunger. A direct reading scale is
engraved on the piston barrel and indicates load in kg. / sq.
cm. A maximum load indicator ring is provided on the
penetration plunger. The calibrated spring is heat treated and
plated for rust resistance. The barrel diameter is 20mm and the
length 150mm. Supplied with carrying case.

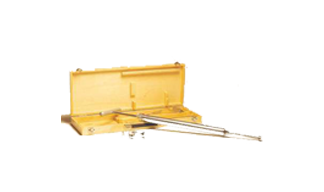

Proctor Needles (Spring Type)
Specification:
The instrument consists of a needle attached to
a spring loaded plunger, the stem of which is
calibrated to read 0 to 40 kg division. Long
stem is graduated at every 12.5mm to read
depth of penetration and for use with needles of
larger areas . The small penetration stem is also
graduation in 12.5mm division and is used
with needles of smaller areas. Needle points
one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and
6.0 sq cm. And one Tommy pin is supplied.
Complete as above in a wooden carrying
case.

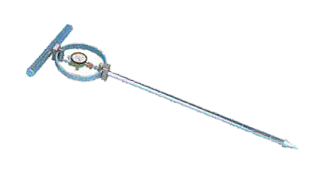

Vicksberg Pentrometer (Proving Ring Type)
Specification:
Consists of a study handle under. Which is fixed a sensitive
proving ring. An extension piece is fixed to the bottom of the
proving ring and carries a detachable penetration cone at its
tip. Proving ring capacity 100 kg (1kn) and 0.002mm dial
gauge provided indicates the penetration load applied.
An optical viewer is provided to facilitate reading the dial
gauge by the operator. Simplified for single person operation.
A calibration chart is provided for the proving ring. Instrument is
complete in a wooden carrying case.

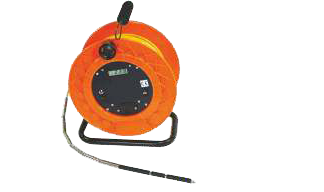

Water Level Indicator
Specification:
Measuring Range 50m, 100m, 150m, 200m
Accuracy 1 cm for a Measuring Range of 100m
Reproductibility 0.5 cm
Pressure Tightness 10 Bar (up to 50 Var Possible)
Probe Chromium-plated Brass
Standart Version 14 mm Dia. 140 mm Long
Special Version 10 mm Dia. 320 mm Long
Cable Polyethylene with 2 steel cores (Anti-corrosive) with Polyamide-coated steel tape,
Graduation in millimeters (mm), in centimetres (cm) and numbering in decimetres
In black color, the meters (m) figures are red colour on yellow-green base
Cable Drum Hard Rubber, Plastic Material and Temperature Resistant
Power Supply 3v DC.2 Baby-cells each 1.5v

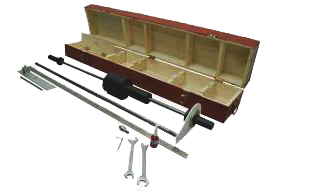

Dynamic Cone Penetrometer
Specification:
A simple and robust instrument for rapid in-situ measurement of the structural properties of road pavements
Provides fast and efficient method of obtaining information
For continuous measurements up to a depth of 800 mm and 1,200 mm with the extension rod.
Portable and can be accommodated in a carrying case

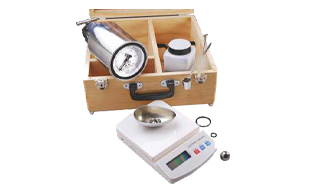

Speedy Moisture Meter (D2 Large)
Specification:
The unit consists of a pressure vessel with clamp for sealing cap,
capacity is 20 gms. Rubber sealing gasket, pressure gauge
calibrated in percentage moisture content 0-25% x 0.25% on the
wet weight basis, an electronic balance for weighing sample, a
scoop for measuring carbide reagent, a bottle of reagent, one
cleaning brush and a set of 4 steel balls for thorough mixing .
Complete in highly polished wooden carrying case with handle

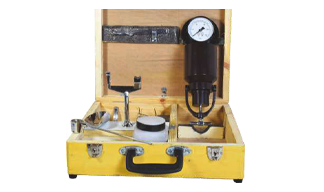

Rapid Moisture Meter
Specification:
The unit consists of a pressure vessel with clamp for
sealing cap, capacity is 6 gms. Rubber sealing gasket,
pressure gauge calibrated in percentage moisture
content on the wet weight basis, a counter poised
balance for weighing sample, a scoop for measuring
carbide reagent, a bottle of reagent, one cleaning brush
and a set of 4 steel balls for thorough mixing . Complete
in highly polished wooden carrying case with handle.
