Sediment by Extraction
Specification:
A test portion of the sample is placed in a refractory thimble. Toluene is gently boiled and its vapors condensed and allowed to drip into the sample funnel. The toluene washes out all of the crude oil or fuel oil leaving the insoluble residue only in the thimble. The mass of the residue is calculated as a percentage and is referred to as the sediment by extraction.
Includes the condenser thimble basket, water cup and extraction thimble.
Drop point Apparatus
This test method covers the determination of the dropping point of lubricating grease. This test method is not recommended for use at bath temperatures above 288°C.
Silver Corrosion test apparatus
Specification:
The copper strip tarnish test assesses the relative degree of corrosivity of petroleum products, including aviation fuels, automotive gasoline, natural gasoline, solvents, kerosene, diesel fuel, distillate fuel oil, lubricating oil an other products.
- A polished copper strip is immersed in 30ml of sample at elevated temperature. After the test period, the strip is examined for evidence of corrosion and a classification number from 1-4 is assigned based on a comparison with the ASTM copper strip corrosion standards.
Freezing Point Test Apparatus
Specification:
Determines the freezing point of aqueous engine coolant solutions by cooling a
sample with continuous agitation until a plateau is observed in a time-temperature curve.

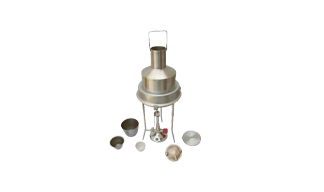

Conradson Carbon Residue
Specification:
This instrument is used to determine the amount of carbon residue left after evaporation and pyrolysis of an oil.
LPG-heated by Meker lamp fitted with safety valve. Insulating ring block, metal tripod holder with Nichrome triangle, stainless steelchimney. Inner porcelain crucible,
middle iron crucible fitted with Skidmore lid and external iron crucible fitted with lid.

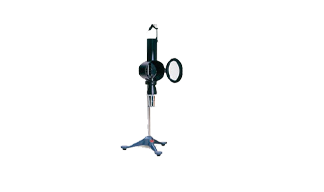

Interfacial Tensiometer
Specification:
Surface Tensiometer is used to measure the surface Tension of Liquids, Tensiometer is used in research & Development Laboratories to determine the surface Tension of Liquids Like Coating, Lacquers or adhesives. uses a Platinum ring of specified diameter which is submersed in the liquid and the ring is pulled out of liquid very precisely. The Force required is measured in order to determine
the Surface Tension.Construction : MS Powder Coater Body, Heavy Duty Construction.
Cloud & Pour Point
Specification:
Cloud and Pour Point Apparatus is used for determination of the highest
temperature at which haziness in oil is observed (cloud point) or the lowest temperature
at which movement of the oil is observed (pour point) of petroleum product.
Consist of drain plug cover ,has provision for fitting thermometer, a
filling aperture for adding freezing mixture. Glass jar, jacket, disc gasket are provided
Smoke Point Apparatus
Specification:
The offered range is manufactured using premium grade components and sophisticated technology in adherence with the set international standards. This apparatus is used to determine the smoke point of kerosene and aviation turbine fuel by measuring the maximum flame height
prior to smoke formation and comparing the results with those of known standards.

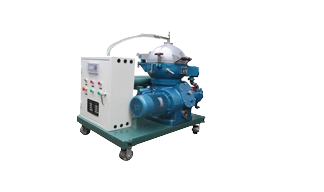

Centrifuge (Oil) Separator
Specification:
A centrifugal filter harnesses centrifugal force to force the separation of liquids. As the separator spins at high speed, centrifugal force is generated much greater than gravity. The dense particles (solid particles and heavy liquid) are forced to
the outer bowl wall due to the centrifugal force created in the unit
