Loss On Heating / Thin Film Oven
Specification:
This dual purpose oven is designed to determine the loss in weight
of bitumen and flux oils (Loss on Heating test) and the effect of heat
and air on asphaltic materials (Thin Film test).
The unit is heavily insulated and has a double glass door for
viewing the test chamber thermometer and samples.
Temperature is controlled at 163° C ± 1° C by means of a
variable temperature controller and thermostat. Two rotating
platforms are supplied with each oven: One accepts 9 standard
penetration cups for the loss on heating test, the other accepts two
140mm diameter test pans for the thin film test. The platforms are
rotated at 5 to 6 rpm by an external motor.
Prd Mould Bs 590:10
Specification:
This mould, vertically split on one side foreseen of clamp
attachment to the box plate. Plated against corrosion, is
utilized for determining the degree of compaction of
Bituminous pavements for quality control purpose

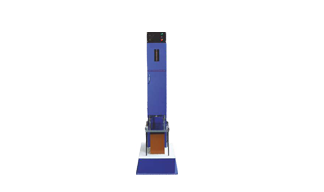

Automatic Compactor For Bituminous Mixes
Specification:
The Automatic Compactor eliminates the laborious process of
manual compaction and an even degree of compaction is
achieved. The driven mechanism lifts the weight of 4.5kg and
drops it through a correct height of 457 mm.
The rammer foot is removable, which facilitates preheating. A
compaction pedestal with specimen holder is fixed to the base. An
Automatic Blow counter enables the number of blows to be present
before each test and automatically stops the machine on
completion. Suitable for operation on 230 V, 50 Hz, Single
Phase, A.C. supply
Rolling Thin Film Oven
Specification:
The superpave PG binder specification looked for tests
which would closely simulate field performance. Hotmix
asphalt binder experiences significant aging during the
manufacturing and laying process. Investigating this
phenomenon within a laboratory environment, with a
repeatable and simple test is very useful within the design
process. The rolling thin film oven (RTFO) test is used to
measure the effect of heat and air on a moving film of semi-solid asphalt binder. The results of this treatment are
determined from measurements of the binder properties
before and after the test. Repeatability of the test is directly
related to the accuracy with which the oven temperature
can be maintained and the reproducibility of the thermal
rise time of the system. Super accurate P.I.D. Controller
Asphalt Content Tester
Specification:
Asphalt Content Tester is used to determine the asphalt content of hot mix
asphalt(HMA) and pavement samples by removing the asphalt in an ignition
furnace by means of sample heating not by means of solvent.Sutiable for operation on 415 V
50 Hz 20 ampere three phase ac power supply. Maximum weight specimen
is 4000 gms, suggested weight of specimen is 1000 gms to 1500 gms.
Balance provided is 10 Kg x 0.1 gms, working temperature of furnace is
800° C, standard working temperature is 538° C. Testing time is 20-30
minutes. Size of the furnace: 350 mm length x 430 mm width x 300 mm
height.

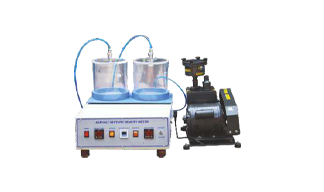

Asphalt Mixer Theoretical Density Meter
Specification:
This equipment is used for determination of theoretical density of
asphalt mixer by vacuum method for application such as asphalt
mixer design, road condition investigation ,calculation of porosity
and compactness in road construction quality management. This
equipment has a main body fitted with a vacuum gauge of Wika
make Germany, 2 vacuum containers made of acrylic pipe & a
vibratory table under with complete control panel. The Vobratory
table operates on manual and automatic mode to release the
entrapped air from the asphalt sample kept inside the vessels. It is
suitable to work on 230 V AC single phase 50 Hz. Vacuum range
0-100 KPA (0-750 mm Hg) vibration loading is 10 kg. no of
samples tested is 2.

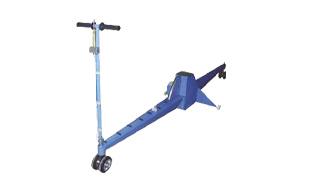

Travelling Beam Device
Specification:
The Travelling Beam Device is used to check for any
irregularities in both concrete and bituminous road
surfaces. A sensing unit comprising a wheel connected to
an indicator provides a magnification of 4:1. Deviation of
the surface from a straight-line is shown on a scale
calibrated in increments of 2 mm in the 0-10 mm range
and 5 mm increments in the 10-25 mm range. It comprises
a manual dye marker which is used to mark irregular
surface sections when found.
Straight Edge (3 Meters)
Specification:
A straight edge approximately 3 meters in length may be
used to determine lateral surface regularity of a road
surface. This lightweight apparatus is made up of mild
steel or aluminum as per customers requirement and is
equally supported at both ends producing a set height
between the road surface & the beam. Any vertical
irregularity is measured using incremented wedges.
Benkelman Beam
Specification:
Light
w
eight
Aluminium constr
u
ction
Ease
of
Transportation
Unique Telescopic Design Simplifying Field
set up
Compact,
Thereby
reducing the amount
of storage
space
needed
Benkelman Beam
utilizes the technique
of
using balanced beam in
conjunction
with a suitable vehicle
to
measure
road
flexure
The improved Benkelman Beam is a convenient,
accurate device for
measuring the deflection of
flexible pavements under
moving wheel loads. Operating on a simple lever arm principle, the unit
consists. Supplied
with carrying case

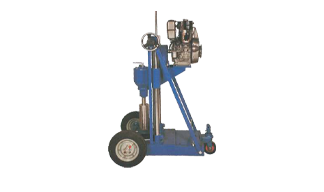

Pavement Core Drilling Machine
Specification:
The Pavement
Core Drilling Ma
chine is petrol
engine powered.
Road/Building drill
has been designed
specifically
for the purpose
of drilling test cores
from or holes in,
Roads,
Airport
Run ways,
Bridges etc. The Machine comprises of two
vertical support columns,which carry the Drill
head/Engine assembly with the help
of screwed spindle.The 5 HP petrol engine
with pulley mechanism works with minimum vibrations.
The double precision bit advances with screwed spindle,
which provides a constant, accurate drill pressure, minimum core
chipping & long bit life.
The complete assembly is supplied on a
rigid metal base
with leveling facility and is suitable for vertically down coring applications only

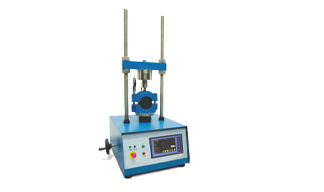

Automatic Marshall Stability Test Machine
Specification:
Automatically calculates flow and stability values
Can make test with displacement and limited load
control
Real time display of test graph.
CPU card with 32-bit Arm RISC architecture
Permanent storage capacity up to 10000 test results.
4 analog channels, 2 channels are active for marshall test
Programmable digital gain adjustment for load-cell,
pressure transducers, strain-gauge based sensors,
potentiometric sensors, voltage and current transmitters
1/256000 points resolution per channel
10 data per second sample rate for each channel
Ethernet connecting for computer interface
800x480 resolution 65535 color TFT-LCD industrial
touchscreen
4 main function keys
Multi-language support
3 different unit system selection; kn, ton and lb
Real-time clock and date
Test result visualization and memory management
interface
Remote connection through ethernet
USB flash disc for importing test results and for firmware
USB printer support for inkjet and laser printers (ask for
compatible models)
Camera support for real-time video recording during test
(ask for compatible models)
Free of charge PC software for the test control and
advanced report generation

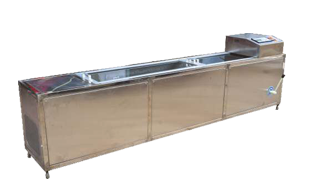

Refrigerated Ductility Test
Specification:
With refrigeration system and micro-processor based digital temperature controller. Ductility is defined
as distance in
cm to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is
stretched at a
rate of 50 mm/min.± 2.5mm per minute at a temperature of 27°c ± 0.5°C. The machine is having built in
refrigeration
system to work a below ambient temperature up to 8°C in tropical conditions. The machine will operate at
27°C with
control accuracy of ± 0.5°C as per the requirement of IS. The apparatus consists of water bath with a
heater, and a
circulating pump to maintain uniform water temperature . One half of the briquette moulds is fixed in a
fixed plate in the
water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating
threaded shaft with a
clutch, the motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the
bath. A pointer
fixed to the carrier moves over. A scale graduated from 0-100 cm x 1mm fixed on the bath with "0" (zero)
of the scale
towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min. And
1cm/min.
Selected by a clutch. Water bath inside is of stainless steel with insulation and water drain cock . A
heater with is fitted
inside the water bath. The temperature is controlled by dual display microprocessor based auto tuning
PID digital
temp. Indicator cum controller. Control switches for motor, stirrer, heater and indicator lamps are
fixed at a convenient
place on the water bath. Complete with three briquette moulds and one base plate, all supply single
phase.
